Thermo-Taurus disposable thermocouple for precise steel measurement

Disposable thermocouple for fast, safe temperature measurement in molten steel.

Reliable temperature measurement for steel and high-temperature metals

Thermo-Taurus disposable thermocouple for precise temperature measurement

Thermo-Taurus is a disposable thermocouple for accurate temperature measurement of molten steel and high-temperature-resistant metals. Developed for industrial processes, it delivers reproducible measurement results within seconds. The disposable design prevents measurement deviations due to wear or residues.

Disposable thermocouple for steel and high-temperature metals

Precise measurements up to 1,820 °C under extreme conditions

Temperature measurement is based on the thermoelectric effect. Thermo-Taurus is designed for measuring ranges from 1,200 to 1,700 °C and reaches maximum temperatures of up to 1,820 °C. Short response times of 4–6 seconds ensure fast process decisions.

Thermocouple types 602 and 604

Selection based on round contact or triangular contact

The disposable thermocouples are available in two contact designs:

  • Type 602: Round contact
  • Type 604: Triangular contact

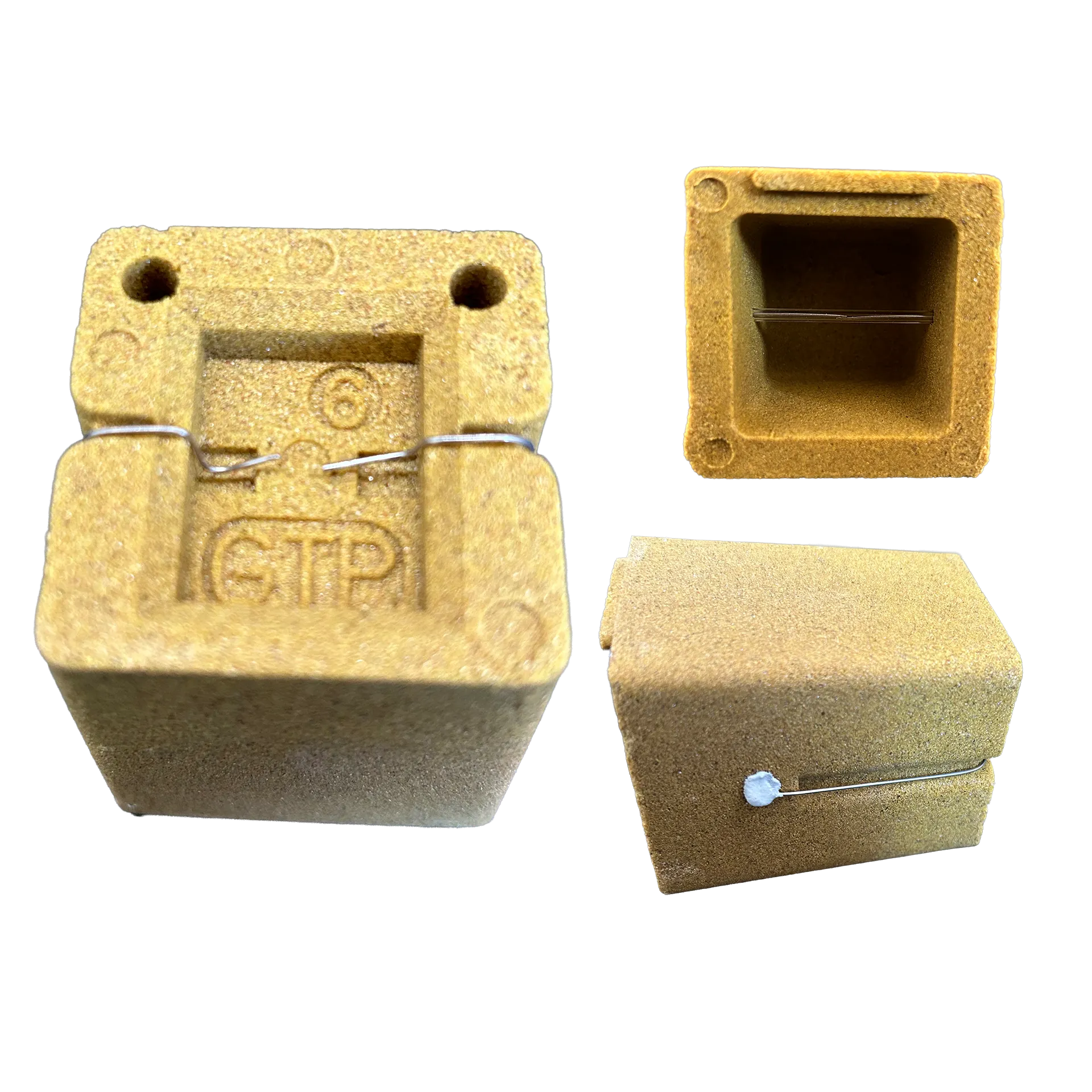

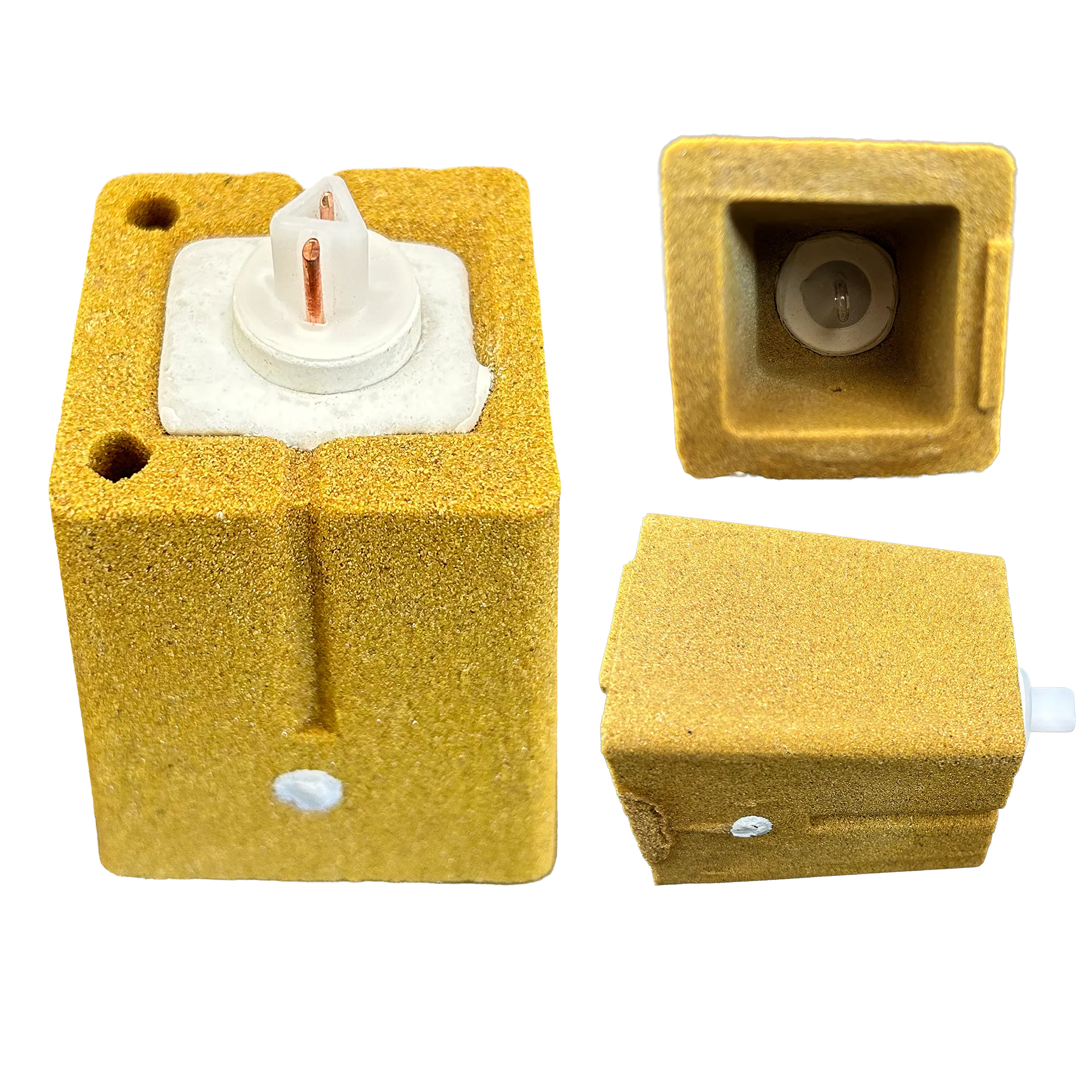

Thermo taurus 604Thermo taurus 602

Thermocouple alloys and temperature ranges

Types S, R, B, and WRe for various high-temperature applications
Typ Modell Abweichung Temperaturbereich Max. Temperatur Reaktionszeit
S 602 / 604 ±5 °C / ±3 °C 1.200–1.600 °C 1.760 °C 4–6 s
R 602 / 604 ±5 °C / ±3 °C 1.200–1.600 °C 1.760 °C 4–6 s
B 602 / 604 ±5 °C / ±3 °C 1.200–1.700 °C 1.760 °C 4–6 s
WRe 602 ±5 °C 1.200–1.700 °C 1.820 °C 4–6 s

Lengths and dimensions of disposable thermocouples

Suitable variants for different measuring probes and process conditions

Available standard lengths (mm):
300, 600, 900, 1,000, 1,200, 1,500, 1,800

Inner diameter: 18 mm
Outer diameter: 30 mm

Packaging units:
50 pieces per box
2,000 pieces per pallet

Thermo taurus 2

Use of disposable thermocouple tips

Clear steps for precise results in melting processes
  1. Select the length of the protective paper sleeve to match the measuring range.
  2. Attach the thermocouple tip to the measuring lance.
  3. Set the measuring device to zero.
  4. Immerse the tip 300–400 mm deep into the molten steel. Do not
  5. touch the furnace wall.
  6. Measure for a maximum of 5 seconds.
  7. Remove the thermocouple immediately and replace it.
  8. Wait a few minutes before taking the next measurement.

Advantages of disposable thermocouples in industrial applications

Process reliability, reproducibility, and precise measurements
  • Precise temperature measurement in critical process windows
  • Reproducible reaction time of 4–6 seconds
  • High stability thanks to quartz tube support
  • Minimization of contamination thanks to protective cap
  • Low training requirements thanks to simple application
  • Wide range of variants
  • High safety thanks to disposable concept
